About the product

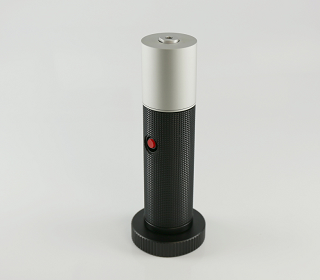

Type 2101 is a handy type reference exciter with which vibration meters using piezoelectric acceleration pickup can be easily calibrated at the measurement site.
It is low cost and can provide accurate sine wave vibration without distortion, enabling calibration of acceleration, velocity and displacement (10 m/s², 10 mm/s, 10μm).
【Feature】
※Built-in pickup for reference level control
※Calibration of pickup up to 70 g in weight is possible
※Carrying case included
- Example of usage
- Specification
- Standard components
- Other materials
 |

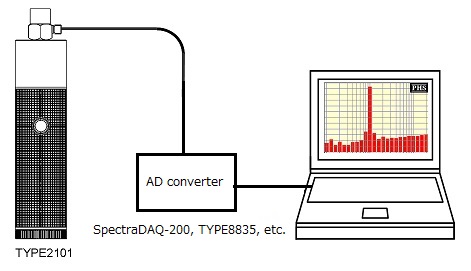

| Firmly fix the acceleration pickup with the screw attached to the product or by using thin double-stick tape. Push the push button on the side of the body to start the operation. Adjust the measurement equipment so that correct reference value is indicated. |
| Vibration Frequency | 159.2Hz | ±1%(-10℃～+55℃) |
| Vibration Acceleration | 10m/s² (rms) | ±3%(+10℃～+40℃) ±5%(-10℃～+55℃) |
| Vibration Velocity | 10mm/s(rms) | ±4%(+10℃～+40℃) ±6%(-10℃～+55℃) |
| Vibration Displacement | 10μm(rms) | ±5%(+10℃～+40℃) ±7%(-10℃～+55℃) |
| Lateral Vibration Amplitude | Less than 5 % of the amplitude in main axis | |
| Limit of the mass of the acceleration pickup to be calibrated | Less than 5 % | |
| Total Harmonic Distortion | Less than 3 % (Mass of the acceleration pickup to be calibrated 20～60g) |
|
| Less than 5 % (Mass of the acceleration pickup to be calibrated 10～70g) |
||
| Overload sensing function | Calibration is automatically stopped if the mass is over 100 g. | |
| Operation Mode | Automatically stopped (after approx. 3 minutes of operation) |
|
| Battery | Size AA battery 4 ea | |
| Operating Temperature and Humidity | -10℃～+55℃, 90％RH max. | |
| Dimension and weight | φ43mm×179(L)mm, approx. 550 g (including battery weight) |
|
| Calibration Exciter TYPE2101 | 1 ea |
| Straight cable for calibration 0.8m | 1 ea |
| M6/M3 Adapter Screw | 1 ea |
| M6/UNF Adapter Screw | 1 ea |
| M6 Flat Screw | 1 ea |
| Carrying Case | 1 ea |
| Size AA battery | 4 ea |
| Instruction Manual | 1 ea |

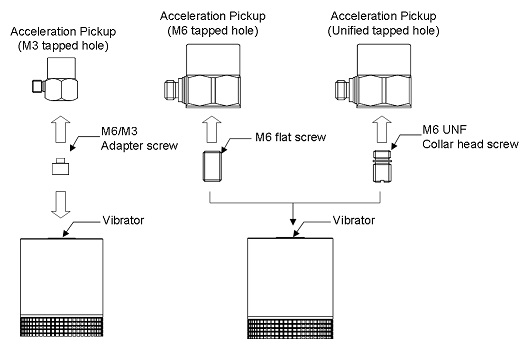

Acceleration Pickup Mounting Method
