About the product

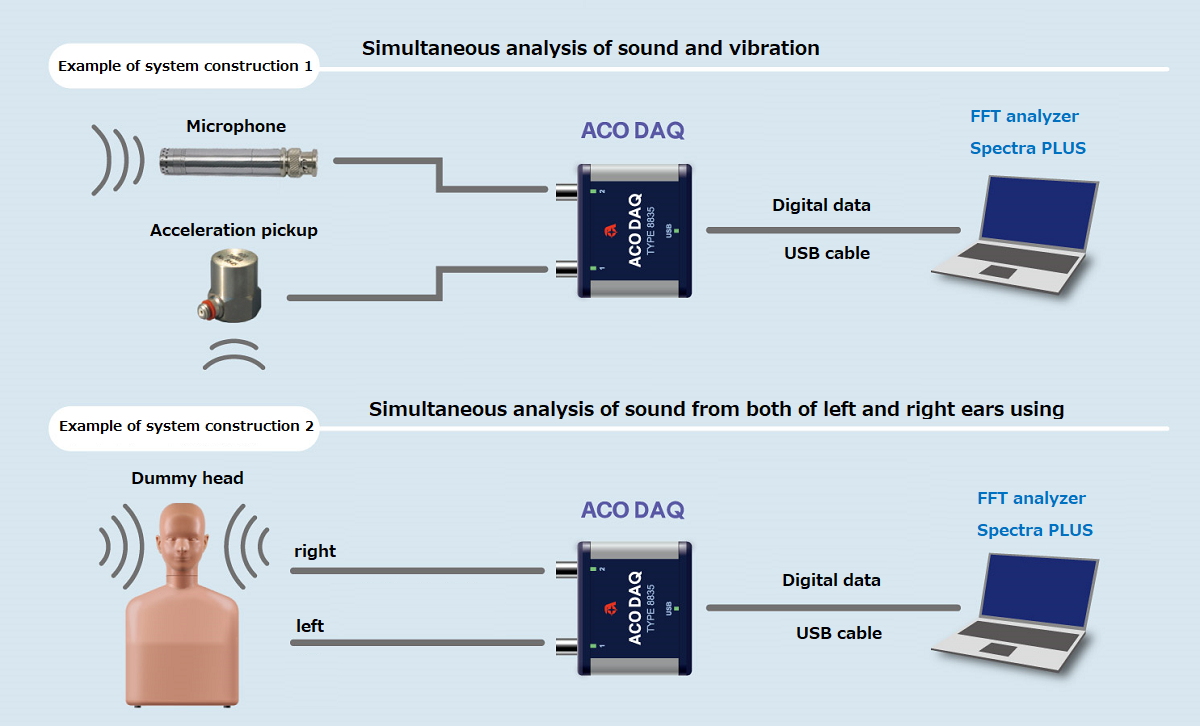

ACO DAQ is a compact and light weight 2 channel AD converter developed for the purpose of audio recording or analysis. When connected using USB interface, etc. it is recognized by Windows system as USB audio codec device, and general recorder / measurement application program can be used without requiring installation of exclusive device driver.
- Feature
- Specification
- Other materials
・Real-time AD conversion of sound / vibration data
・Sampling of 2 channels, 24 bit, 48 kHz is possible
・USB bus power : Suitable for outdoor usage with its compact design
・USB interface : Data management and analysis is possible by connecting with PC
・Suitable for analysis for automobile, construction equipment and various inspection
・Can be directly connected to preamplifier integrated IEPE type sensors
・Compatible with Windows
| No. input channels | 2 channels |
| Analog input | BNC, IEPE single end |
| Impedance | 100 kΩ |
| Frequency range | 3.5 Hz ~ 20 kHz |
| Dynamic range | 90 dB |
| Sampling rate | 48 kHz |
| Bit rate | 24 bit |
| Constant current | 28 V, 4 mA |
| Power source | USB bus power (power consumption less than 0.8 W) |
| Operating temperature | 0 °C ~ 50 °C (without condensation) |
| Storage temperature | -10 °C ~ 60 °C |
| Compatible OS | Windows 7, Windows 10 |
| Dimension | 70 (W) X 60 (D) X 20 (H) mm |
| Weight | 50 g |
